ULP Reverse Osmosis Membrane Element, Ultra-Low Pressure RO Membrane

The ultra-low-pressure membrane is especially suited for use in water and municipal water treatment systems. This RO membrane element operates at extremely low pressures while simultaneously providing a high performance and reducing operation costs. Designed with an outstanding quality and top performance, the reverse osmosis membranes feature a high rejection rate of up to 99.5% and a high flux at low working pressures. Equipped with the low-pressure RO membranes, RO system operation costs are significantly reduced.

The ULP series RO element is widely used for the treatment of surface water, underground water, and municipal water with TDS readings of less than 2000 ppm. This functional reverse osmosis membrane element is primarily used in bottled water, drinking water, boiler replenishment water, ultrapure water, process water, etc.

Model: ULP440
Active Membrane Area ft2(m²)：440(40.9)
Permeate Flow Rate GPD (m³/d): 12000(45.4)
Stabilized Rejection Rate (%): 99.5

Inquiry

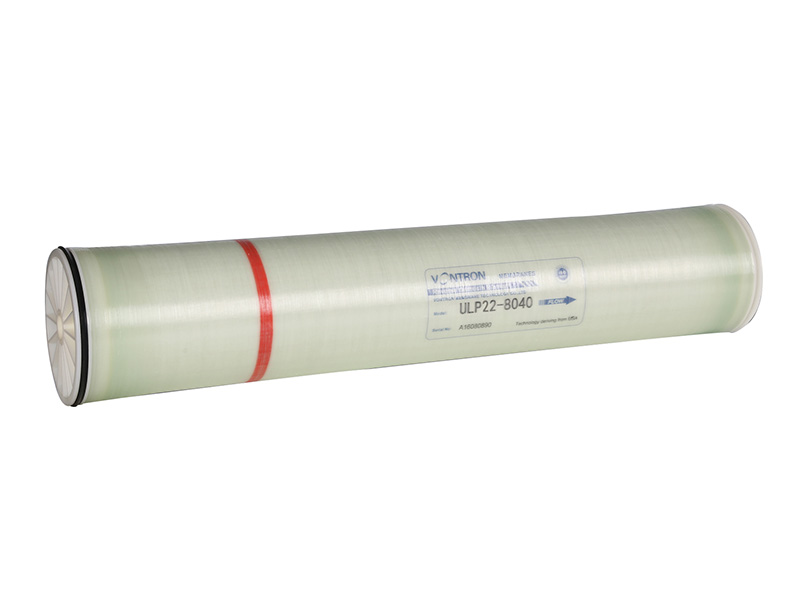

Model: ULP22-8040
Active Membrane Area ft2(m²)：400(37.2)
Permeate Flow Rate GPD (m³/d): 12100(45.8)
Stabilized Rejection Rate (%): 99

Inquiry

Model: ULP32-8040
Active Membrane Area ft2 (m²)：400(37.2)
Permeate Flow Rate GPD (m³/d): 10500(39.7)
Stabilized Rejection Rate (%): 99.5

Inquiry

Model: ULP100
Active Membrane Area ft2(m²)：100(9.3)
Permeate Flow Rate GPD (m³/d): 2800(10.6)
Stabilized Rejection Rate (%): 99.5

Inquiry

Model: ULP21-4040
Active Membrane Area ft2(m²)：90(8.4)
Permeate Flow Rate GPD (m³/d): 2400(9.1)
Stabilized Rejection Rate (%): 99

Inquiry

Model: ULP31-4040
Active Membrane Area ft2(m²)：90(8.4)
Permeate Flow Rate GPD (m³/d): 1900(7.2)
Stabilized Rejection Rate (%): 99.4

Inquiry

Model: ULP21-4021
Active Membrane Area ft2(m²)：36(3.3)
Permeate Flow Rate GPD (m³/d): 950(3.6)
Stabilized Rejection Rate (%): 99

Inquiry

Model: ULP21-2540
Active Membrane Area ft2(m²)：30(2.8)
Permeate Flow Rate GPD (m³/d): 750(2.84)
Stabilized Rejection Rate (%): 99

Inquiry

Model: ULP21-2521
Active Membrane Area ft2(m²)：14(1.3)
Permeate Flow Rate GPD (m³/d): 300(1.13)
Stabilized Rejection Rate (%): 99

Inquiry

• Restaurants
• Aquariums
• Whole House (Residential)
• Office
• Institutions
• Hotels
• Hospitals
• Disaster Relief
• Spot Free Rinse/Car Wash
• Labs
• Pharmaceutical
• Humidification
• Misting
• Manufacturing
• Rinse Water
• Bottled Water
• Water stores
• Beverage
• Food Processing
• Commercial Water Treatment
• Ice Makers
• Tap Water
• Brackish Water
• Wide Variety of Other Applications
